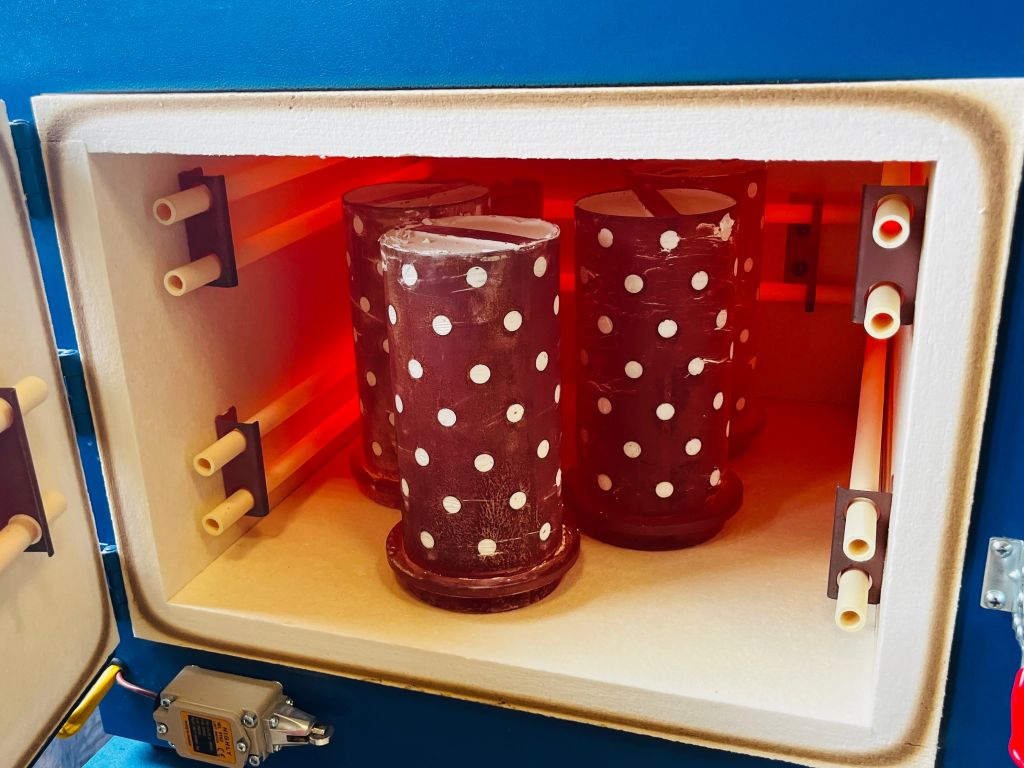

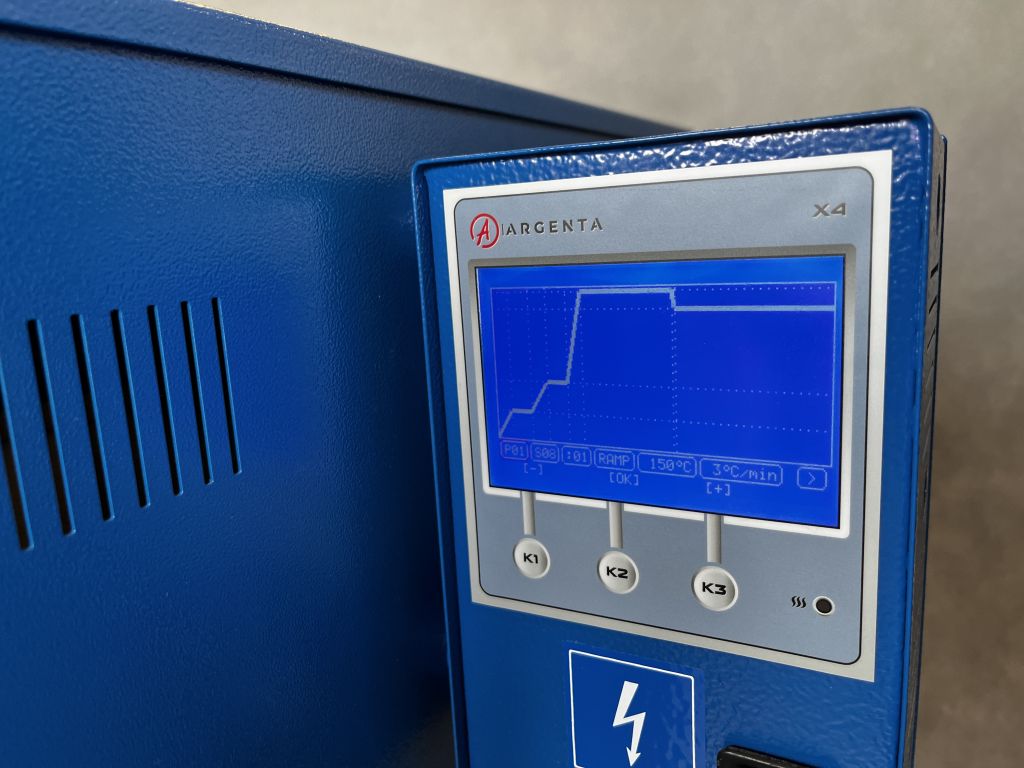

The furnace is used for heating foundry flasks according to the programme defined by the producers of casting compounds. Thermal insulation is made of ecological aluminosilicate fiber. The furnace is equipped with a programmer ensuring the implementation of two different programmes, sixteen cycles each, with the possibility of setting the cycle temperature, its duration and the temperature increase. It is possible to activate a foundry programme with a delay.

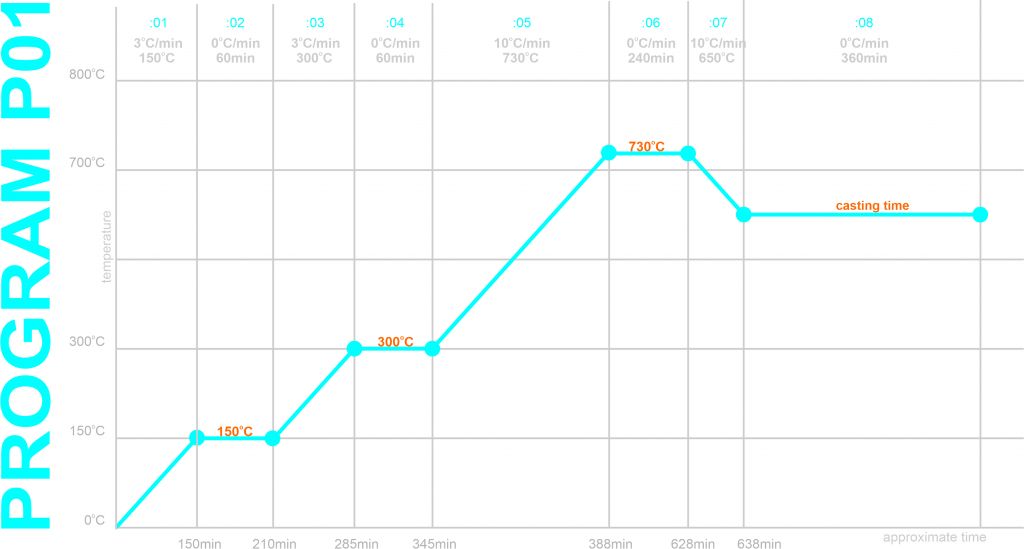

The first programme has been factory installed - it is a popular 12-hour heating programme.
The programme of the controller also ensures the implementation of the programme according to the assumptions made, even in case of the failure and re-activation of the supply voltage.
1
2
4
5
|
|
APE800
|
APE1000 | |
|---|---|---|---|
| Rated voltage: | 220-240V/50-60Hz | 220-240V/50-60Hz | |
| Rated power: | 2400W
|
1500W | |
| Maximum temperature: | 800ºC | 1000ºC | |
| Adjustable temperature rise: | 1-10ºC/min | 1-15ºC/min | |
| Number of casting programs: | 30
|
2 | |
| Cycles in program: | 16 | 16 | |
| Maximum delay in starting program: |
40 days |
40 days | |
| Inner chamber dimensions:
|
370x410x270mm | Ф120x200mm | |
| External dimensions:
|
700x640x530mm
|
260x400x670mm | |
| Weight: | 43kg
|
21kg |
|
